FT571 50kN FT572 100kN FT573 200kN marine seafloor straight push CPT

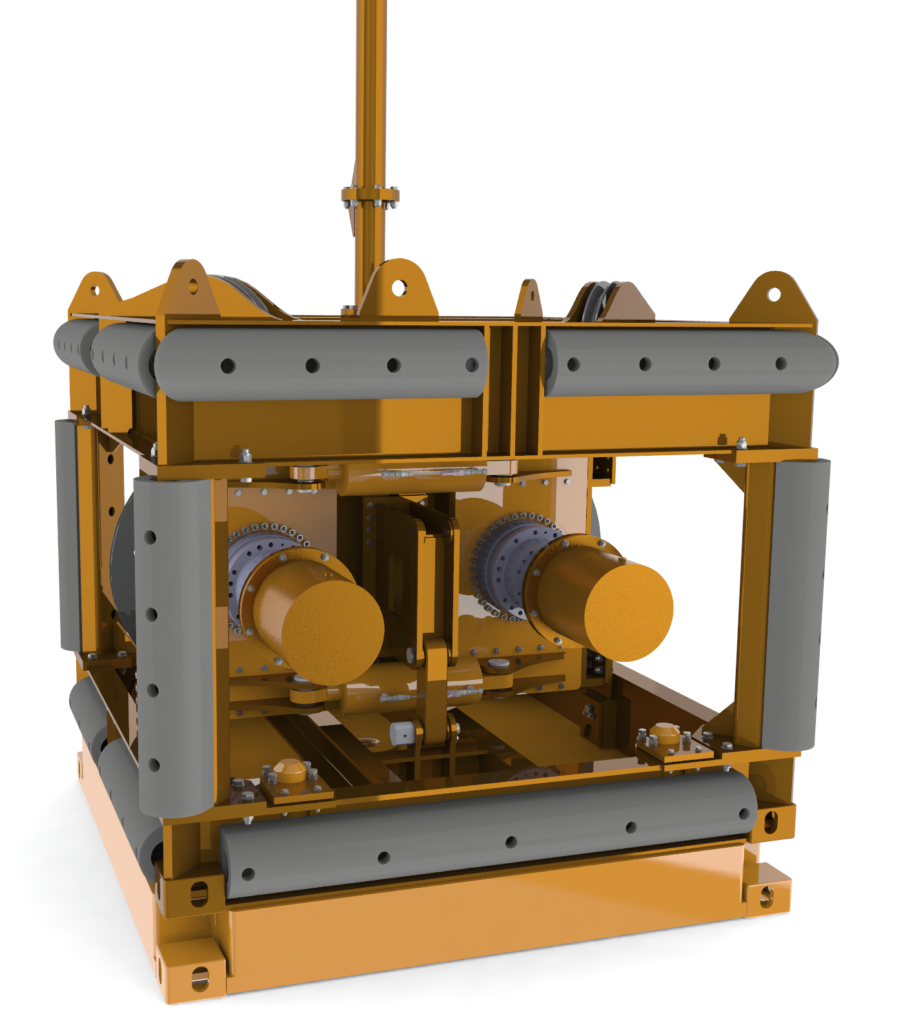

The Feritech FT573 200kN seafloor CPT system shows the way for the latest generation CPT technology. Simple to use, quick to mobilise, and with advanced features, it produces class-leading results.
Available to buy and also for rent
This flexible system can be deployed from a vessel or platform
The advanced wheel drive system accommodates standard CPT rods and can be adjusted for different rod diameters.
The FT573 200kN heavy weight CPT has been designed from the ground up to offer the user maximum flexibility and the power to ensure deep continuous penetration.
Please contact us for further details.
Product Highlights
- Capable of 100kN thrust
- Operational depths of up to 2000m
- Variable sounding speed of 15 – 26 mm/sec
- Variable retracting speed of 15 – 60 mm/sec
- Compatible with Ø36mm rods
- Entire system fits in a 20ft ISO container
- Can also record measurements on extraction as well as during thrust
- Modular ballast (unit can be ballasted from between 50kN and 100kN thrust)
- Real time monitoring and control
- All calibration data and cone history is stored within the cone – no more paper records
Bespoke Solutions
Using the latest techniques, we can deliver bespoke solutions for your next subsea challenge. We have designed equipment that has been used on seabed frames, sent downhole, attached to buoys and masts, or towed behind vessels.
Whether the solution requires electrical, electronic, mechanical, hydraulic or simulation techniques, Feritech have the experience and skills to take on any project in the marine industry (or indeed, onshore).
Please contact us to discuss your ideas and to find out more.
